Overview
- Make
- GMC
- Model
- DFM-20
- Condition
- New
- Stock #
- DFM-20
Spec Sheet
- ISO 9001 certified
- 1-Year parts only warranty
- Emboss up to 4 foot stainless steel sheet metal x 20 Ga.
- 18” throat depth
- Steel welded framework
- High grade ball bearings

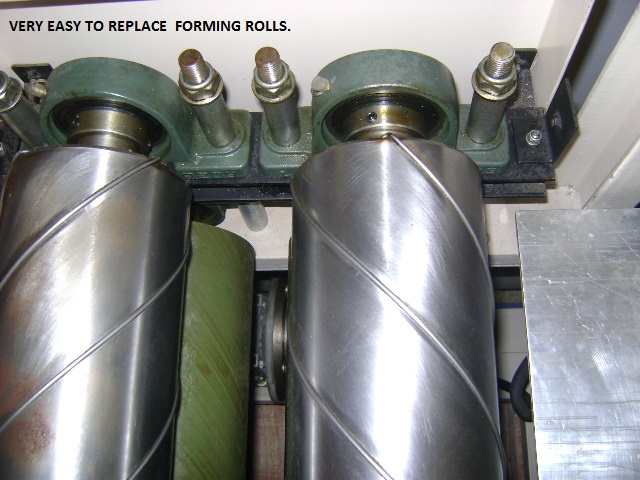

- 2 – Top forming steel rolls
- 2 – Bottom pressure rubber rolls

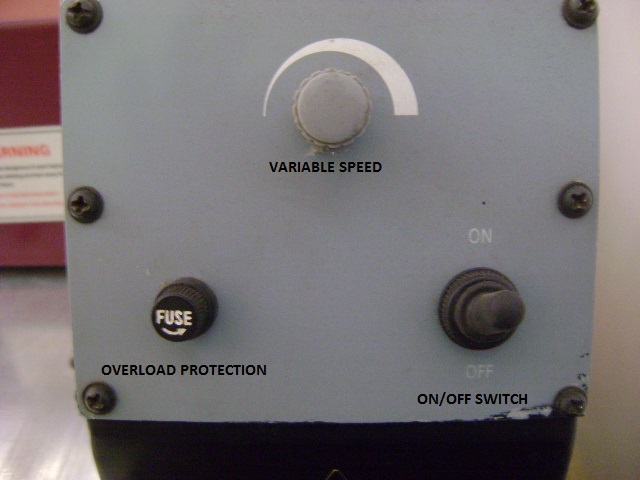

- Variable speed control
- Overload protection fuse
- Infeed table with side gauge
- Easy for one person operation
| MODEL# | DFM-20 |
| Max. material capacity (width): | 4 foot sheets (50") |
| Diamond Size: | 3-7/8”x 3-7/8” |
| Max. material thickness: | 20 Ga. |
| Variable speeds: | 9-16 RPM |
| Motor: | 2 HP - 110V / 60 HZ |
| Net Weight: | 1,650 lbs. |
| Dimensions: | 63" x 53" x 43" |
For more complete information: https://www.gmcmachinetools.com/catalog
