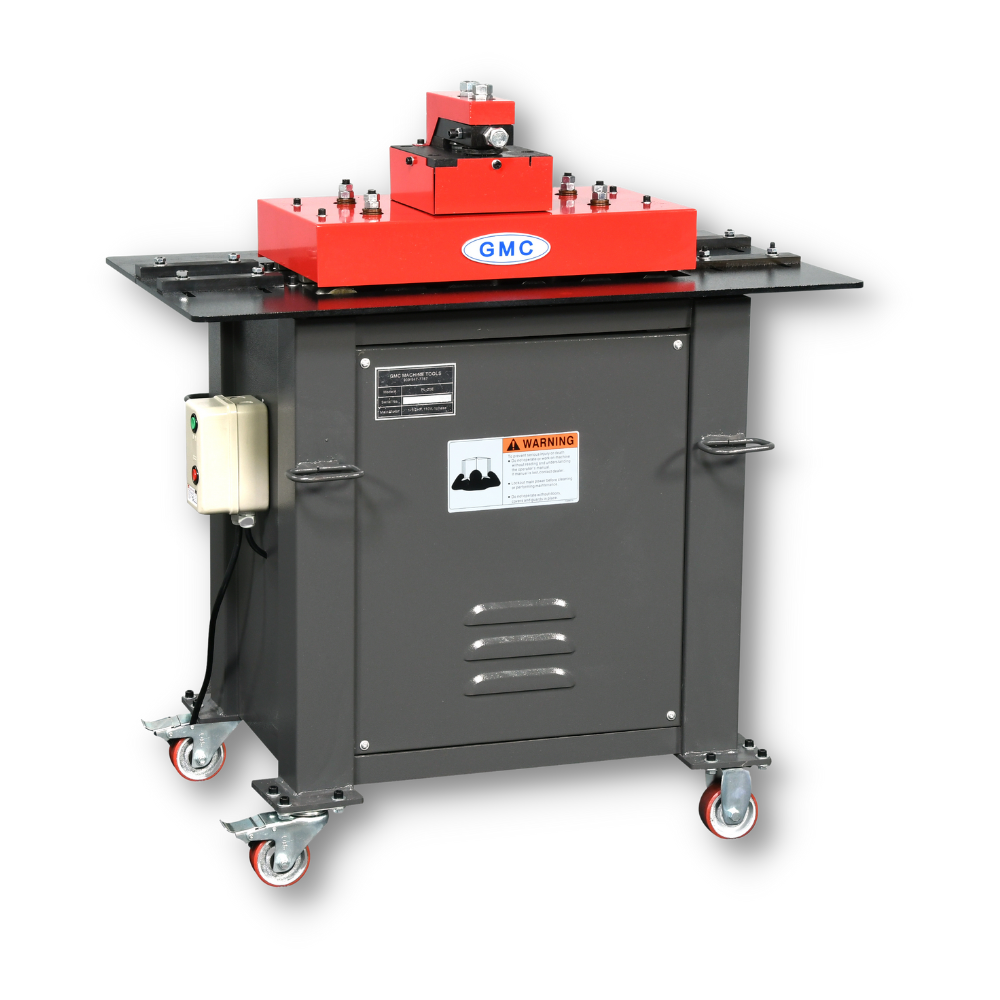

Overview
- Make
- GMC
- Model
- PL-16E
- Condition
- New
- Stock #
- PL-16E
Spec Sheet
- 16 gauge capacity: The PL-16E can handle sheet metal up to 16 gauge, making it suitable for a wide range of applications.
- Creates tight, interlocking joints between two pieces of sheet metal
- Made with high-quality materials and construction for durability and longevity
- Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
- Compact and portable design for easy storage and transport
- Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
- ISO 9001 certified
- 3 HP Heavy Duty AC main motor, 220V, 3 phase
- Standard Pittsburgh Attachment
- Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
- ACME side can be operated at same time
- Heavy duty caster wheels for easy moving
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

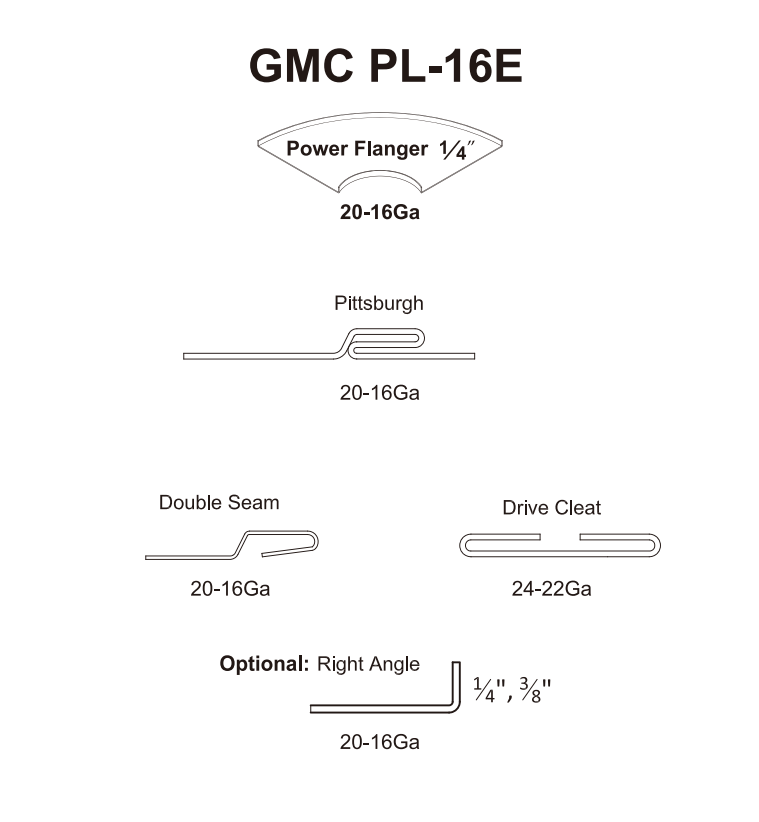

Capacity:
Pittsburgh Lock
20 Ga. - 16 Ga.
Double Seam Lock 20 Ga. - 16Ga. Drive Cleat Lock 24 Ga. - 22 Ga. Power Flange 1/4" 20 Ga. - 16 Ga. Depth of pocket 1/2" Feeding speed 23 FPM Main Motor 3 HP, 3 Phase 10 AMP
Prewired: 220VAC
220V, 1 phase is optional
Weight 628 LBS Machine Dimensions (LxWxH):
Shipping Dimensions:
43" x 27" x 48"
